Why is your water chiller energy consumption so high?

Type：Industry News Date：2018-04-12 11:42:45

Why is your water chiller energy consumption so high? What's the power consumption?

For the vast number of users, the power consumption of the chiller is a problem that the user is very concerned about. Many users are complaining that my unit is too expensive and the electricity is too high. Now let's discuss why your chiller works so much.

The cooling capacity of Taizhou Cheng Shun refrigeration equipment is directly related to the operating conditions of the system. For the same structure, the speed and the type of refrigerant have been determined, the cooling capacity and energy consumption are changed as the operating conditions change and the operation management is different.

First, when the scale of the condenser wall reaches 1.5mm, the condensing temperature increases by 2.8 degrees and the power consumption increases by 9.7.

Two, the surface of the evaporator is covered with a layer of frost, which reduces the heat transfer coefficient, especially when the outer surface of the fin tube frosts, not only increases the heat transfer resistance, but also makes the air flow between the fins difficult, and reduces the heat transfer coefficient and the heat dissipation area of the surface. When the indoor temperature is below 0 C, when the temperature difference between the two sides of the evaporator tube is 10 degrees, the heat transfer coefficient of the evaporator is about 70 of that before frosting for a month.

Three, the gas inhaled by the compressor allows a certain degree of overheat, but the overheat is too large, the specific volume of the inhaled gas is increased, the cooling capacity is reduced, and the relative power consumption is increased.

Four, shrink the machine to frost, quickly turn off the small suction valve, sharply reduce the cooling output and increase the power consumption.

Five, with the decrease of evaporation temperature, Bitzer compressor compression ratio increases, increasing the refrigerating capacity of energy dissipation. When the evaporation temperature decreases by 1 degrees, it will consume more electricity than 3%-4%. Therefore, as far as possible, the evaporation temperature difference and evaporation temperature can be reduced as much as possible, which not only saves electricity consumption, but also improves the relative humidity of cold rooms.

Six, with the increase of condensing temperature, the compression ratio of compressor increases, and the energy consumption per unit cooling capacity increases. The condensing temperature is between 25 -40 and 1 C, increasing power consumption by 3.2%.

Seven. When the heat exchange surface of the condenser and evaporator is covered with the oil layer, the condensing temperature will rise and the evaporation temperature decreases, which leads to the decrease of cooling capacity and the increase of electricity consumption. When a 0.1mm thick oil layer is deposited on the inner surface of the condenser, the cooling capacity of the compressor will be reduced by 16.6 and the power consumption is increased by 12.4. When the inner surface of the evaporator is oil deposited in the thick oil layer of 0.1mm, the evaporation temperature will decrease by 2.5, and the power consumption will increase by 9.7.

Eight, when the air is gathered in the condenser, it will cause the condensation pressure to increase. When the partial pressure of the non condensing gas reaches 1.96105Pa, the power consumption of the compressor will increase by 18.

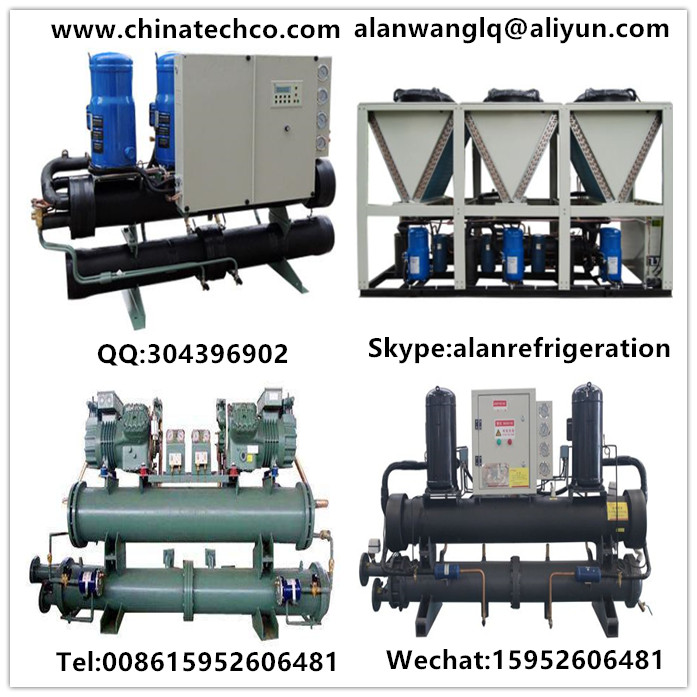

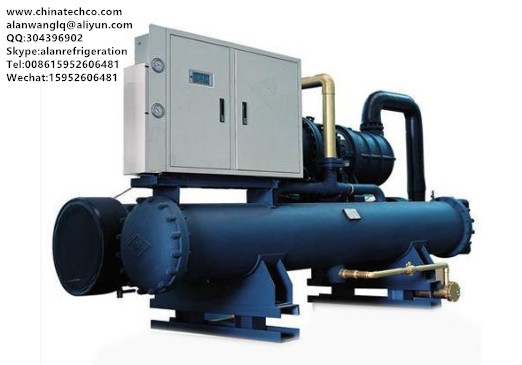

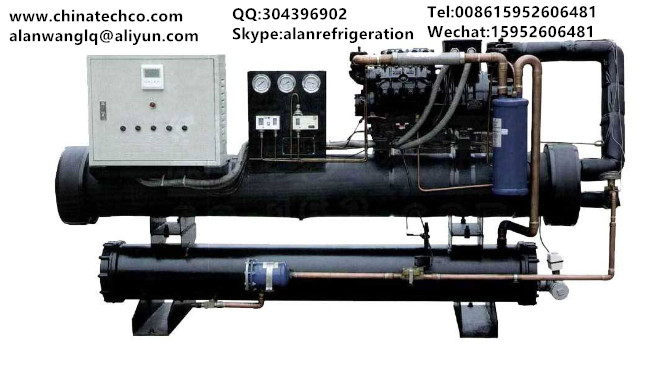

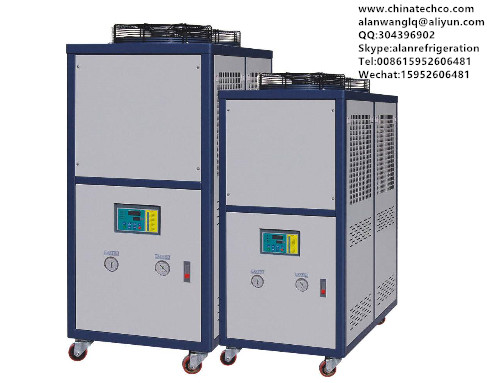

The main products of Cheng Shun refrigeration include: water cooled screw chiller, air-cooled screw chiller, industrial chiller, water-cooled box chiller, air-cooled box chiller, cold chiller, injection cold water machine, electroplating cold water machine, concrete cold water machine, low temperature explosion-proof chiller, special non standard water chiller, Chemical cold water machine, titanium bubble cold water machine, laser cold water machine, low temperature cold water chiller, central air conditioning host, mold temperature machine, cooling water pump, cooling tower, cold storage refrigeration unit: piston condensing unit, screw type condensing unit, box type air cooled condensing unit, screw type parallel unit and so on. All product series are made by ISO9001 quality management system standard, with complete production license certification of industrial products, and a series of CCC, ACMEC, ETCC, CE, GS, ATN and a series of professional certification at home and abroad. With advanced refrigeration technology and excellent quality, Taizhou Cheng Shun Refrigeration Co., Ltd. has been collecting and developing well, and has achieved satisfactory results. The company's first-class after-sales service has won the trust and support of the vast number of users.
